Night Club Novos at the Phoenix Market city Kurla, Mumbai, India







OVERVIEW

Night club is the project that searches for the spatial dimension in audio art. Black mirror acoustic walls with black stretch reflective ceiling control the bounce of sound and lights and manifest the intersection of architecture , music, sound and space.

Brass golden chain design with LED screen projection, presenting perceptions of the dynamically designed club. Composite white Onyx as a top of the bar lighted up giving horizontal alignment to the space.

The modest volume of the club is amply magnified by surfaces that create multiple reflections and pulsate with synchronized light and sound.

Concept +design

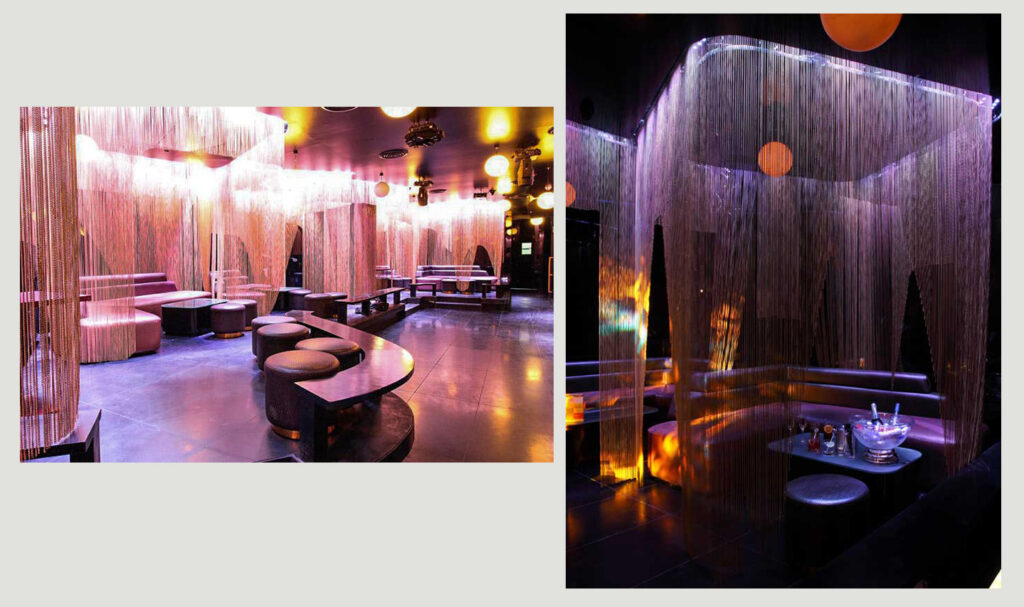

Brass golden chains are cutted to follow the seating zones of the club. Bras chains are suspended from the t.w framing

Ceiling- 12mm marine plywood ceiling with RGB Lighting inside cove and 4mm thk veneer finished in black automotive paint.





Staircase design- as a connection between Novos Night club and Urban space-Bar Bar





Nightclubs  are frequently the source of high noise levels requiring carefully considered acoustic treatment. The acoustic floating flooring is the first element we constructed.

We lifted it to form an air gap and isolated from the existing structure through  LDS rubber . The walls of the structure are built upon this flooring and are only attached to the external walls through our special acoustic wall braces.

The ceiling is suspended from acoustic hangers.



Acoustic isolation- Anti vibration Graded Flute Rubber Floor Mounts( size: 3”x 3”)

Acoustic foam-Sonaswing Acoustic isolation wall Mounts and ceiling Mounts.Floor Soundproofing- Tecsound 70- 3.5mm membrane from Texa (sheet size:1.2 x 1m).It is flexible and improves both impact and airborne passage of sound. It is a high density polymer based synthetic soundproofing membrane providing excellent acoustic insulation. It is fire resistant and self extinguishing.











Toilet door camouflaged with beveled edge mirror paneling .

Walls are finished with clear stone until 1025 mm ht. and beveled mirror above.  Toilet area- 6mm Bronze mirror and FH. Beveled edge mirror.

Anodized aluminium section. Alabaster- ceiling suspended lamps.

Composite white Onyx as a top of the bar lighted up giving horizontal alignment to the space.

Brass golden chain design with LED screen projection.

Synchronized light and sound- kinetic ceiling including 20 kinetic mirror balls and LED lights.

All kinetic elements were  targets with 20 Robe Pointe moving lights in full motion with music and high precision motor systems for this unique spectacle.

Wall& column cladding finished in 6mm thk black mirror Flooring of the club and toilet is finished with black granite.

Fumed oak black veneer for loose furniture and doors.The modest volume of the club is amply magnified by surfaces that create multiple reflections and pulsate with synchronized light and sound.















Construction site



KEY FACTS

Name: Night club Novos

Scope: concept design, schematic, 3D model, detail design, tender drawings and project management.

Client:  Phoenix Market city

Size:  450sqmt

Location: Mumbai, India
Status: completed

Team: Marijana Beric, Sagar Ragathi, Sujata Laghori, Zia Shaikh ; Designed at Urban Studio (2014 year)
